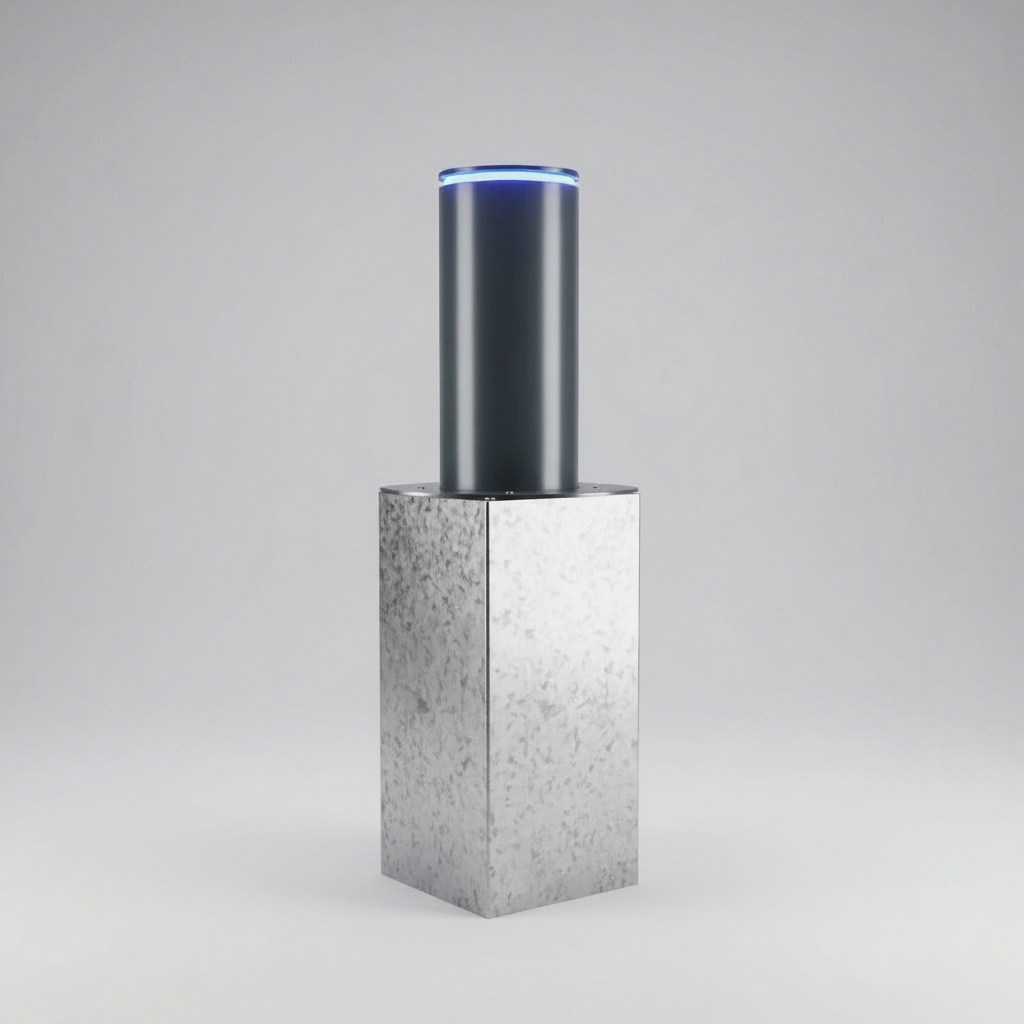

Automatic Rising Bollard Manchester Ø220 x 500 mm – Electromechanical
£1,139.00 excl. VAT
Stainless steel bollard, 220 mm diameter, 500 mm high. The key feature of this range is the thickness of the cylinder or rising post: 4 mm.
Heavy-duty, remote control included.
Made to order in our Barcelona workshop: approx. 15 working days + 3–5 days delivery to the UK.
Delivered to the UK on DAP terms. Import VAT and duties are paid by the customer on delivery. Minimum order £135.
10+ units −5% · 25+ units −10%
Combine units of any bollard in the same order.
Combine units of any bollard in the same order.
- 2-year warranty
- Made in our own Barcelona workshop
- Secure payment by card, PayPal or bank transfer
Tube: Carbon steel
CYLINDER DIAMETER: Ø220 mm.
CYLINDER HEIGHT: 500 mm.
CYLINDER WALL: 4 mm.
RISE TIME: 7 seconds.
OPERATING TEMPERATURE RANGE: -20 °C to +80 °C.
MOTOR SUPPLY VOLTAGE: 220V-50Hz.
ELECTRICAL CONNECTION CABLE: 20 metres.
REFLECTIVE TAPE: 25 mm, level III.
Motor power: 24v
2x remote controls
Installation guide
This applies to almost all of our automatic bollards. On the battery versions there is no cabling to run to the control panel: skip the corrugated duct and step 7.
What the kit includes: ground sleeve, bollard with mechanism, control panel and 20 m of cable.
Steps
- Hole: dig a hole 370 mm in diameter, with a recommended depth of 850 mm.
- Gravel: lay a bed of gravel at the bottom.
- Ground sleeve: measure the height of your sleeve (around 69 cm, depending on the model) and fill with gravel until, once it is in place, it sits flush with the road surface.
- Before concreting: seal the side junction box carefully so no cement gets in, as this is where you will make the cable connections later. Lay the corrugated duct, with a draw wire, from the sleeve to the control panel.
- Concrete: backfill around the sleeve with cement or concrete, flush with the ground.
- Curing: leave to set for 24 to 48 hours.
- Wiring: pull the cable through the duct. There are 4 wires: 2 for the LEDs and 2 for the motor. Connect the control panel following the markings in the instructions.
- Easy connection: lower the bollard into the sleeve, propping it up with two 50 mm wooden blocks, one on each side, so you can make the connections in the junction box without strain.
- Finishing: tidy the cables, remove the wooden blocks, lower the bollard, line up the threads and screw on the top cover.
- Test: run several up-and-down cycles. You can raise and lower the bollard with the remotes and the app, but not via WhatsApp. If your model supports it, pair the remotes and install the app following the manual.
Any questions? Contact us and we will be happy to help.
| Weight | 25 kg |
|---|---|
| Dimensions | 900 × 250 × 250 mm |
